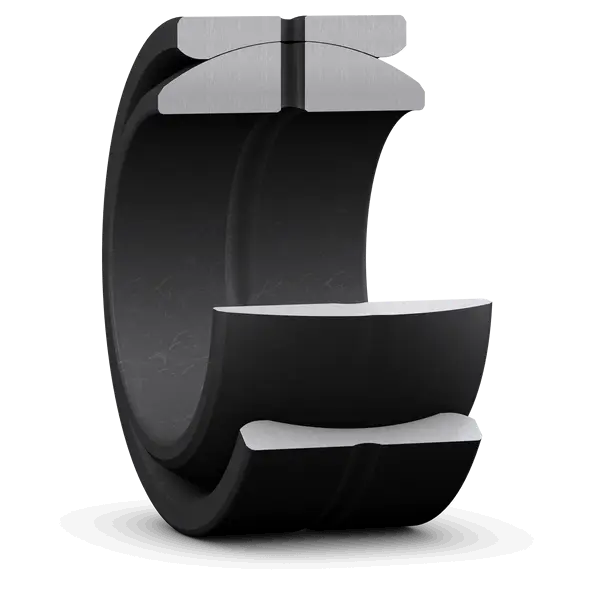

SKF GEZ 008 ES
Radial spherical plain bearing, requiring maintenance, inch sizes
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
12.7 mm
Bore diameter
D
22.225 mm
Outside diameter
B
11.1 mm
Width
C
9.525 mm
Width outer ring
α
6.0 °
Angle of tilt
dk
18.263 mm
Raceway diameter inner ring
b
1.6 mm
Width annular lubrication groove at outer ring
b1
1.5 mm
Width annular lubrication groove at inner ring
M
1.5 mm
Diameter lubrication hole (outer ring)
r1
0.2 mm
Chamfer dimension bore
r2
0.6 mm
Chamfer dimension outer ring
mass
0.0182 kg
Product net weight
