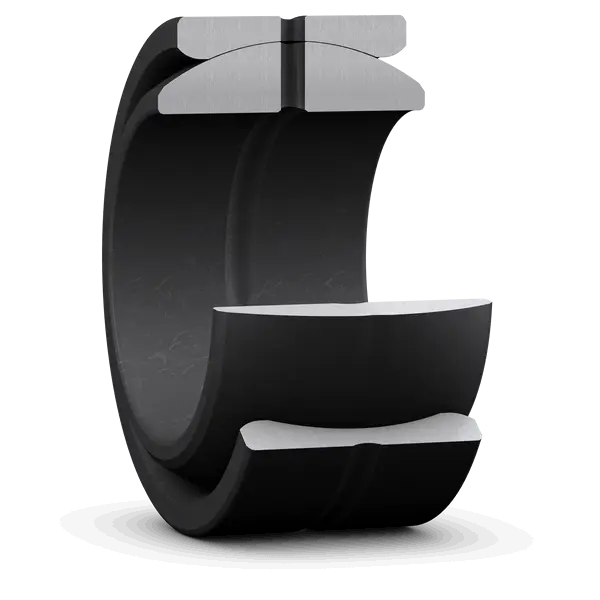

SKF GEZ 010 ES
Radial spherical plain bearing, requiring maintenance, inch sizes
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
15.875 mm
Bore diameter
D
26.988 mm
Outside diameter
B
13.894 mm
Width
C
11.913 mm
Width outer ring
α
6.0 °
Angle of tilt
dk
22.835 mm
Raceway diameter inner ring
b
2.7 mm
Width annular lubrication groove at outer ring
b1
3.0 mm
Width annular lubrication groove at inner ring
M
2.5 mm
Diameter lubrication hole (outer ring)
r1
0.2 mm
Chamfer dimension bore
r2
1.0 mm
Chamfer dimension outer ring
mass
0.0322 kg
Product net weight
