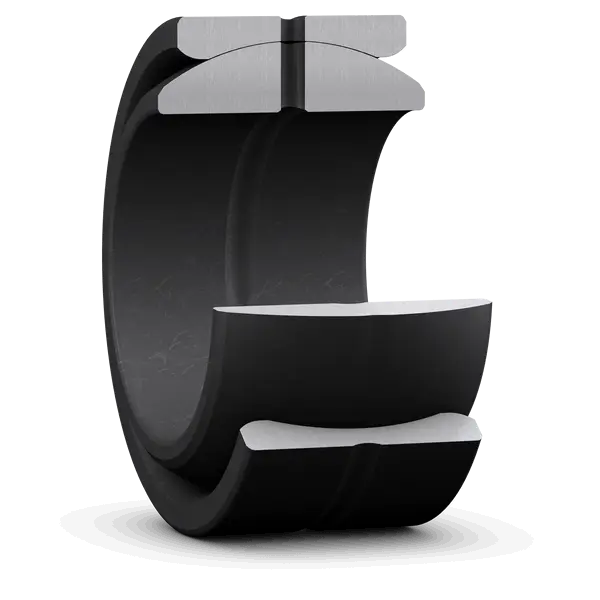

SKF GEZ 014 ES
Radial spherical plain bearing, requiring maintenance, inch sizes
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
22.225 mm
Bore diameter
D
36.513 mm
Outside diameter
B
19.431 mm
Width
C
16.662 mm
Width outer ring
α
6.0 °
Angle of tilt
dk
31.953 mm
Raceway diameter inner ring
b
2.7 mm
Width annular lubrication groove at outer ring
b1
3.0 mm
Width annular lubrication groove at inner ring
M
2.5 mm
Diameter lubrication hole (outer ring)
r1
0.3 mm
Chamfer dimension bore
r2
1.0 mm
Chamfer dimension outer ring
mass
0.085 kg
Product net weight
