SKF GEZ 104 ES-2RS

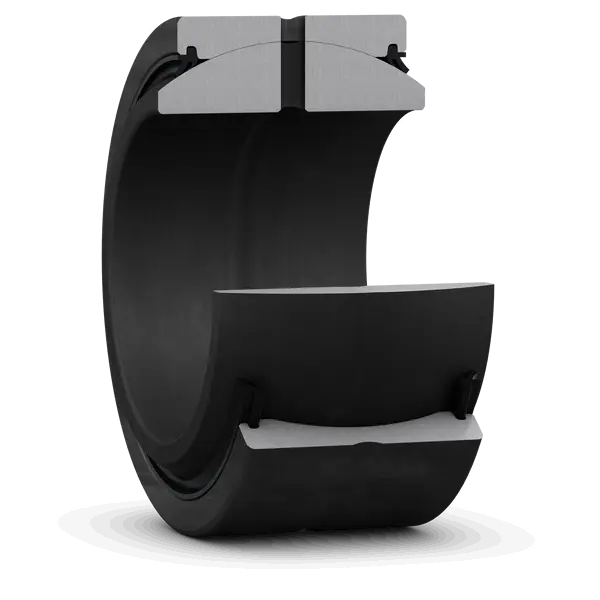

Radial spherical plain bearing, requiring maintenance, sealed, inch sizes
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
31.75 mm
Bore diameter
D
50.8 mm
Outside diameter
B
27.762 mm
Width
C
23.8 mm
Width outer ring
α
6.0 °
Angle of tilt
dk
45.593 mm
Raceway diameter inner ring
b
4.4 mm
Width annular lubrication groove at outer ring
b1
5.0 mm
Width annular lubrication groove at inner ring
M
4.0 mm
Diameter lubrication hole (outer ring)
r1
0.6 mm
Chamfer dimension bore
r2
1.0 mm
Chamfer dimension outer ring
mass
0.214 kg
Product net weight
