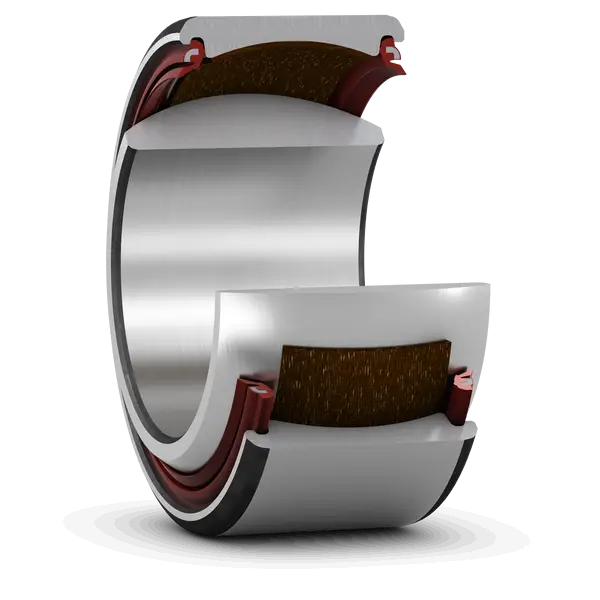

SKF GEZ 106 TXE-2LS
Radial spherical plain bearing, maintenance-free, inch sizes
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
34.925 mm
Bore diameter
D
55.563 mm
Outside diameter
B
30.15 mm
Width
C
26.187 mm
Width outer ring
α
5.0 °
Angle of tilt
dk
49.2 mm
Raceway diameter inner ring
r1
0.6 mm
Chamfer dimension bore
r2
1.0 mm
Chamfer dimension outer ring
mass
0.294 kg
Product net weight
