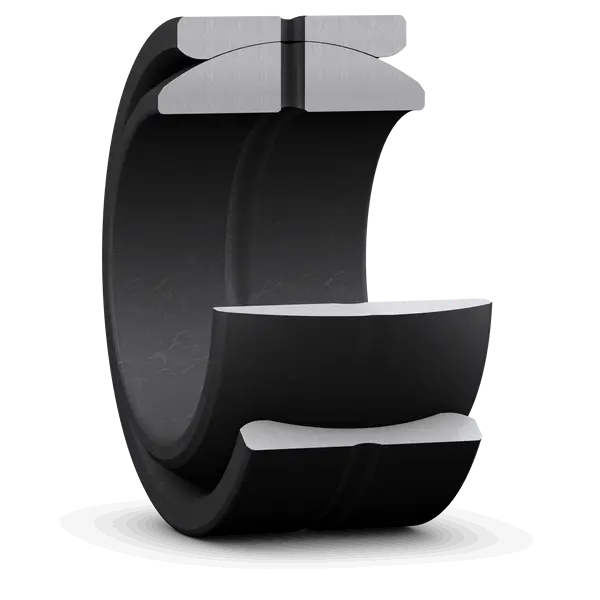

SKF GEZ 200 ES
Radial spherical plain bearing, requiring maintenance, inch sizes
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
50.8 mm
Bore diameter
D
80.963 mm
Outside diameter
B
44.45 mm
Width
C
38.1 mm
Width outer ring
α
6.0 °
Angle of tilt
dk
73.025 mm
Raceway diameter inner ring
b
4.4 mm
Width annular lubrication groove at outer ring
b1
5.0 mm
Width annular lubrication groove at inner ring
M
4.0 mm
Diameter lubrication hole (outer ring)
r1
0.6 mm
Chamfer dimension bore
r2
1.0 mm
Chamfer dimension outer ring
mass
0.924 kg
Product net weight
