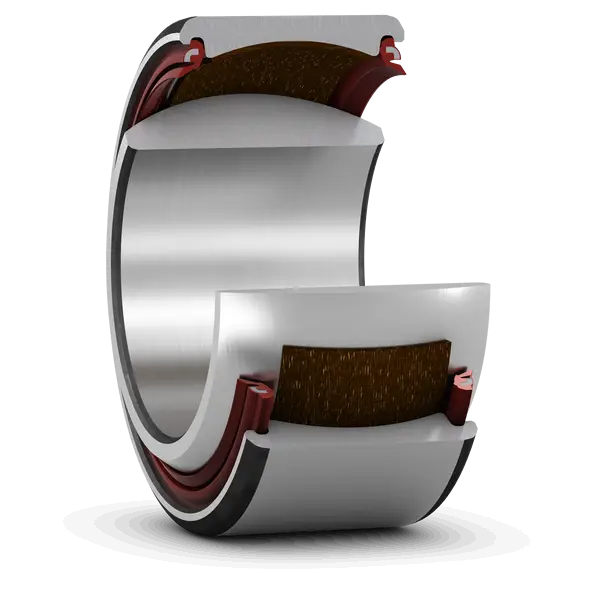

SKF GEZ 200 TXE-2LS
Radial spherical plain bearing, maintenance-free, inch sizes
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
50.8 mm
Bore diameter
D
80.963 mm
Outside diameter
B
44.45 mm
Width
C
38.1 mm
Width outer ring
α
6.0 °
Angle of tilt
dk
73.025 mm
Raceway diameter inner ring
r1
0.6 mm
Chamfer dimension bore
r2
1.0 mm
Chamfer dimension outer ring
mass
0.91 kg
Product net weight
