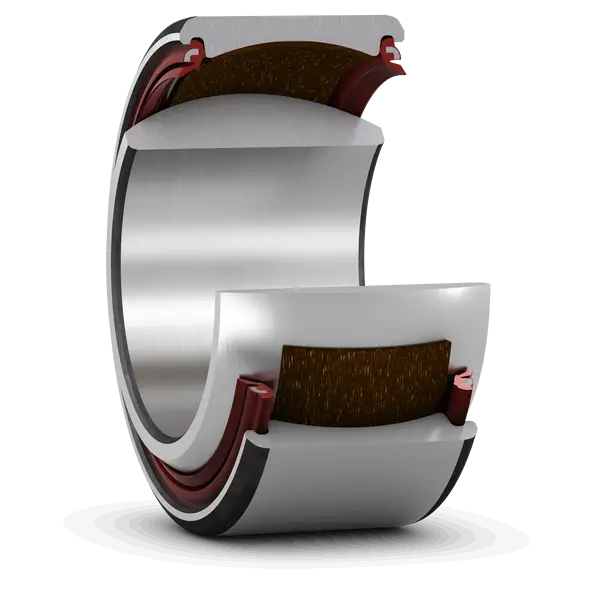

SKF GEZ 212 TXE-2LS
Radial spherical plain bearing, maintenance-free, inch sizes
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
69.85 mm
Bore diameter
D
111.125 mm
Outside diameter
B
61.112 mm
Width
C
52.375 mm
Width outer ring
α
6.0 °
Angle of tilt
dk
100.33 mm
Raceway diameter inner ring
r1
0.6 mm
Chamfer dimension bore
r2
1.0 mm
Chamfer dimension outer ring
mass
2.4 kg
Product net weight
