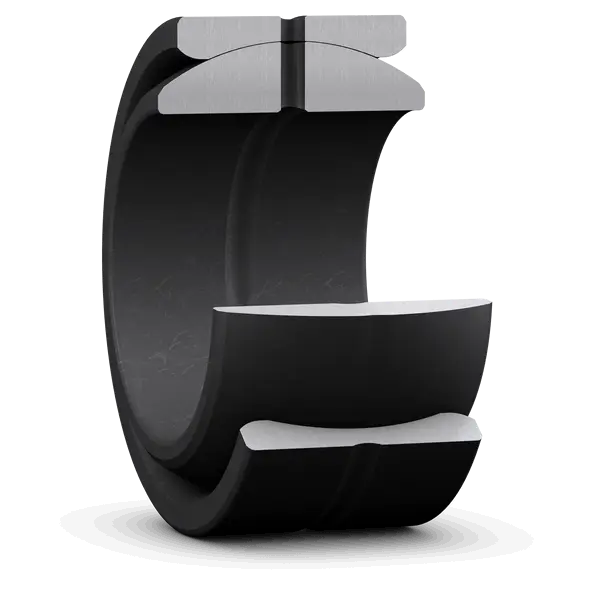

SKF GEZ 304 ES
Radial spherical plain bearing, requiring maintenance, inch sizes
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
82.55 mm
Bore diameter
D
130.175 mm
Outside diameter
B
72.238 mm
Width
C
61.9 mm
Width outer ring
α
6.0 °
Angle of tilt
dk
118.745 mm
Raceway diameter inner ring
b
9.1 mm
Width annular lubrication groove at outer ring
b1
8.0 mm
Width annular lubrication groove at inner ring
M
6.5 mm
Diameter lubrication hole (outer ring)
r1
0.6 mm
Chamfer dimension bore
r2
1.0 mm
Chamfer dimension outer ring
mass
3.84 kg
Product net weight
