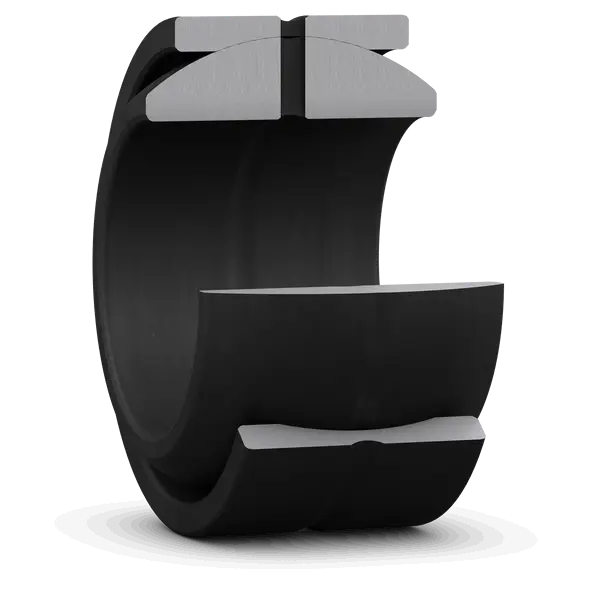

SKF GEZH 104 ES
Radial spherical plain bearing
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
31.75 mm
Bore diameter
D
61.913 mm
Outside diameter
B
35.306 mm
Width
C
28.575 mm
Width outer ring
α
8.0 °
Angle of tilt
dk
54.737 mm
Raceway diameter inner ring
b
4.4 mm
Width annular lubrication groove at outer ring
b1
5.0 mm
Width annular lubrication groove at inner ring
M
4.0 mm
Diameter lubrication hole (outer ring)
r1
1.0 mm
Chamfer dimension bore
r2
1.0 mm
Chamfer dimension outer ring
mass
0.51 kg
Product net weight
