SKF GEZH 208 ES

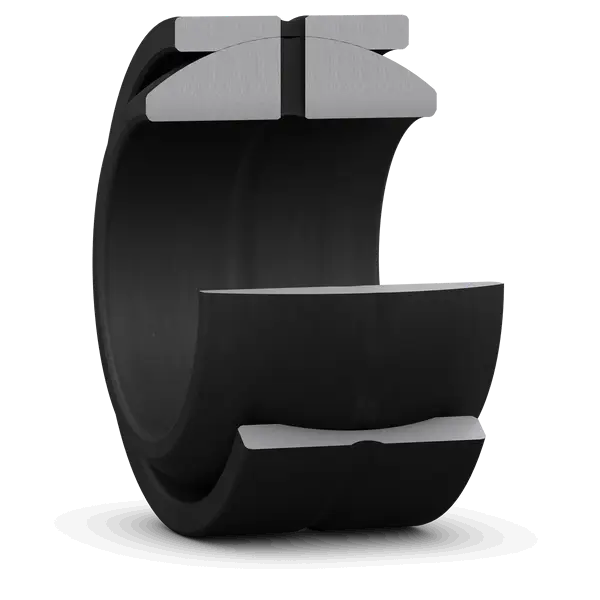

Radial spherical plain bearing
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
63.5 mm
Bore diameter
D
111.125 mm
Outside diameter
B
64.643 mm
Width
C
52.375 mm
Width outer ring
α
8.0 °
Angle of tilt
dk
100.33 mm
Raceway diameter inner ring
b
9.1 mm
Width annular lubrication groove at outer ring
b1
8.0 mm
Width annular lubrication groove at inner ring
M
6.5 mm
Diameter lubrication hole (outer ring)
r1
2.0 mm
Chamfer dimension bore
r2
1.0 mm
Chamfer dimension outer ring
mass
2.74 kg
Product net weight
