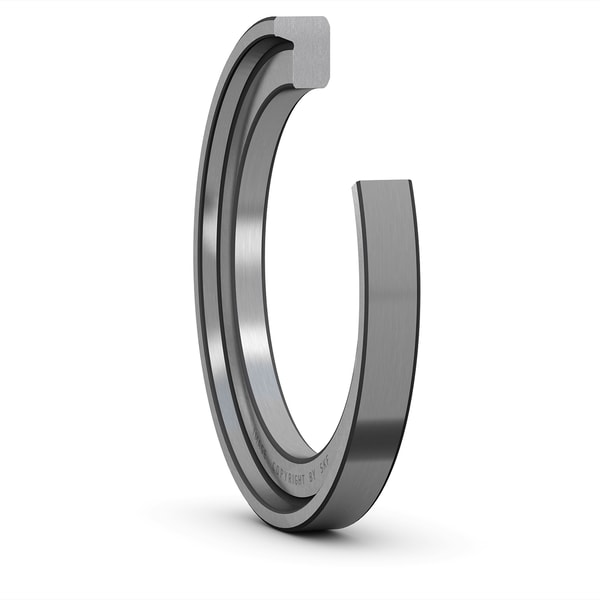

SKF HJ 1080
Angle ring (L-shaped thrust collar) for single row cylindrical roller bearings, NU or NJ design
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
400.0 mm
Bore diameter
d1
470.0 mm
Outside diameter
B1
23.0 mm
Width contacting inner ring side face
B2
43.0 mm
Width
r3,4
5.0 mm
Chamfer length radial direction (angle rings)
mass
10.5 kg
Product net weight
