SKF HJ 216 EC

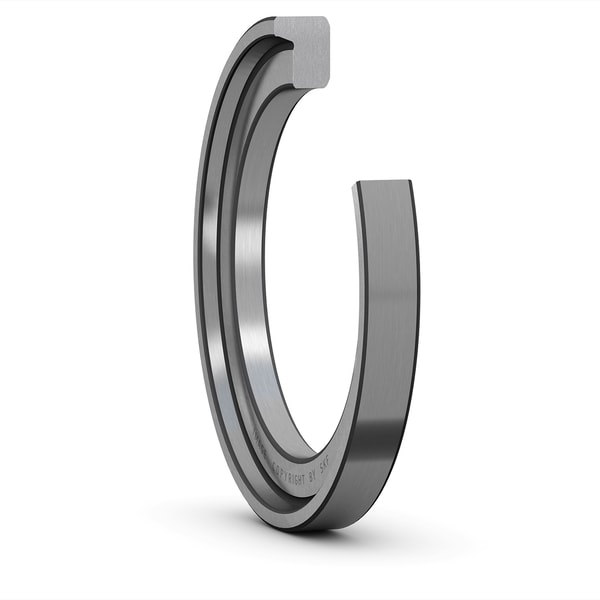

Angle ring (L-shaped thrust collar) for single row cylindrical roller bearings, NU or NJ design
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
80.0 mm
Bore diameter
d1
101.55 mm
Outside diameter
B1
8.0 mm
Width contacting inner ring side face
B2
12.5 mm
Width
r3,4
2.0 mm
Chamfer length radial direction (angle rings)
mass
0.206 kg
Product net weight
