SKF HJ 217 EC

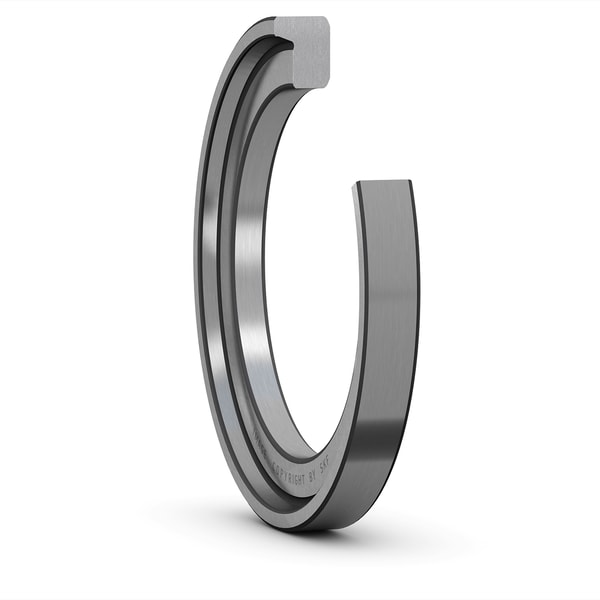

Angle ring (L-shaped thrust collar) for single row cylindrical roller bearings, NU or NJ design
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
85.0 mm
Bore diameter
d1
107.5 mm
Outside diameter
B1
8.0 mm
Width contacting inner ring side face
B2
12.5 mm
Width
r3,4
2.0 mm
Chamfer length radial direction (angle rings)
mass
0.24 kg
Product net weight
