SKF HJ 2317 EC

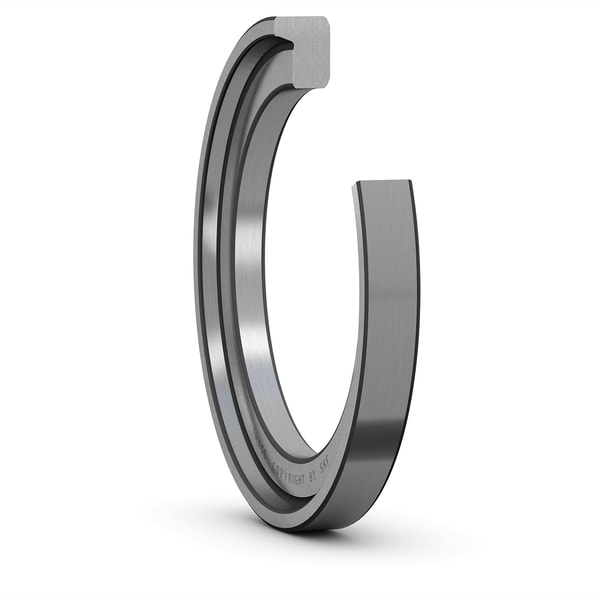

Angle ring (L-shaped thrust collar) for single row cylindrical roller bearings, NU or NJ design
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
85.0 mm
Bore diameter
d1
117.0 mm
Outside diameter
B1
12.0 mm
Width contacting inner ring side face
B2
22.0 mm
Width
r3,4
3.0 mm
Chamfer length radial direction (angle rings)
mass
0.59 kg
Product net weight
