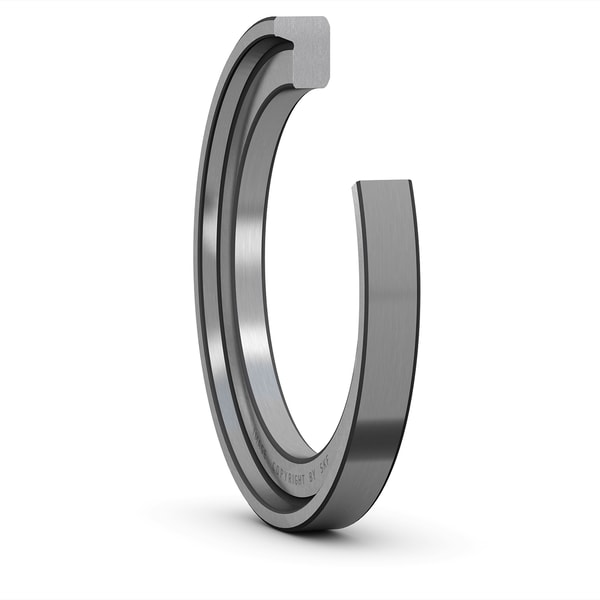

SKF HJ 2318 EC
Angle ring (L-shaped thrust collar) for single row cylindrical roller bearings, NU or NJ design
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
90.0 mm
Bore diameter
d1
124.0 mm
Outside diameter
B1
12.0 mm
Width contacting inner ring side face
B2
22.0 mm
Width
r3,4
3.0 mm
Chamfer length radial direction (angle rings)
mass
0.658 kg
Product net weight
