SKF HW-1500-J2G

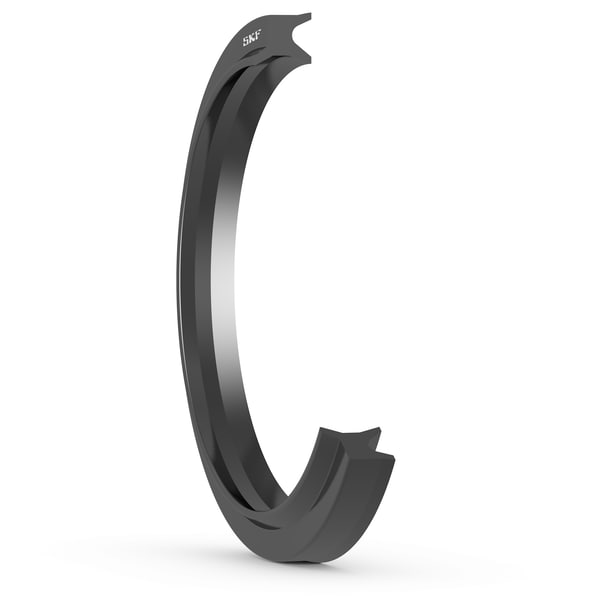

Polyurethane snap-in wiper seal with double lips
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
38.1 mm
Rod diameter
D
47.37 mm
Housing groove diameter
D2
41.53 mm
Housing shoulder diameter
L
5.54 mm
Housing groove width
S
4.64 mm
Radial depth
R
0.64 mm
Groove radius
C
4.75 mm
Lead-in chamfer length on rod
mass
0.0033 kg
Product net weight
SKF HW-1500-J2G Wiper Seal Overview
What type of seal is the HW-1500-J2G?
The SKF HW-1500-J2G is part of the Wiper seals product series within the hydraulic seals category. The supplied product title identifies it as a polyurethane snap-in wiper seal with double lips.
- Brand: SKF
- Model: HW-1500-J2G
- Series: Wiper seals
- Category path: Brand > SKF > Seals > Hydraulic seals > Wiper seals
- Material: Polyurethane (TPU U-1003)
HW-1500-J2G Supplied Dimensions and Weight
What dimensions are provided for this wiper seal?
The product data lists the following dimensional and weight values. Use these figures when comparing the seal with a specific housing or rod arrangement:
- d / Rod diameter: 38.1 mm
- D / Housing groove diameter: 47.37 mm
- D2: 41.53 mm
- L / Housing shoulder diameter: 5.54 mm
- S / Housing groove width: 4.64 mm
- R / Radial depth: 0.64 mm
- C / Groove radius: 4.75 mm
- Product net weight: 0.0033 kg
Double-Lip Snap-In Seal Construction
What construction details are stated in the product data?
The supplied information describes the HW-1500-J2G as a snap-in wiper seal with double lips and identifies its material as polyurethane (TPU U-1003). The product data also includes a lead-in chamfer length on the rod field, but no separate numeric value is provided for that item.
- Confirm the rod diameter, housing dimensions, groove width, and radii against the assembly requirements.
- Review the stated material designation: Polyurethane (TPU U-1003).
- Use the listed net weight for identification or logistics checks where required.
