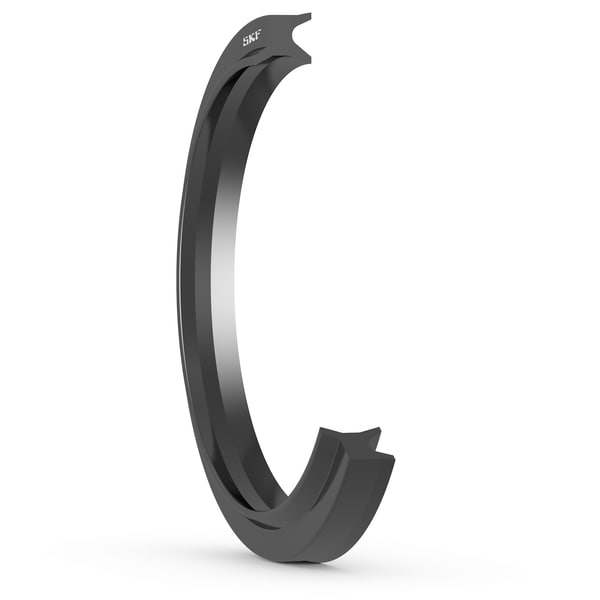

SKF HW-22X30X5-J2G
Polyurethane snap-in wiper seal with double lips
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
22.0 mm
Rod diameter
D
30.0 mm
Housing groove diameter
D2
26.0 mm
Housing shoulder diameter
L
5.0 mm
Housing groove width
S
4.0 mm
Radial depth
R
0.3 mm
Groove radius
C
3.5 mm
Lead-in chamfer length on rod
mass
0.0016 kg
Product net weight
