SKF HW-2500-J2G

SKF HW-2500-J2G Wiper Seal for Hydraulic Seal Applications

What type of seal is the HW-2500-J2G?

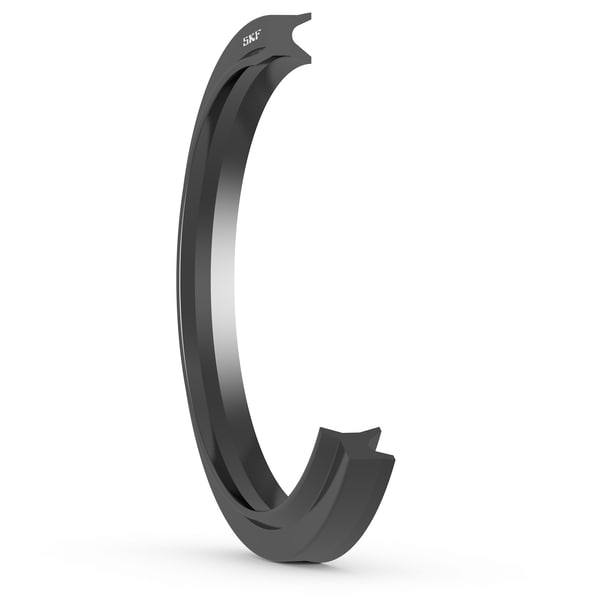

The SKF HW-2500-J2G belongs to the Wiper seals product series within hydraulic seals. It is described as a polyurethane snap-in wiper seal with double lips.

• Brand: SKF
• Series: Wiper seals
• Model: HW-2500-J2G
• Design: Snap-in wiper seal with double lips

HW-2500-J2G Dimensions and Product Data

What dimensions are provided for the SKF HW-2500-J2G?

The supplied product data lists the following measurements for the HW-2500-J2G:

• Rod diameter (d): 63.5 mm
• Outer diameter (D): 76.07 mm
• Housing groove diameter (D2): 66.93 mm
• Housing shoulder diameter (L): 7.14 mm
• Housing groove width (S): 6.29 mm
• Radial depth (C): 6.35 mm
• Lead-in chamfer length on rod (R): 0.64 mm
• Groove radius: Not numerically specified in the supplied data
• Product net weight: 0.0094 kg

Polyurethane Construction for the HW-2500-J2G Seal

What material is specified for the HW-2500-J2G?

The supplied data identifies the seal material as Polyurethane (TPU U-1003). This material designation is provided with the product’s double-lip, snap-in wiper seal description.

1. Confirm compatibility with the intended rod and housing dimensions.
2. Review the listed groove, shoulder, width, depth, chamfer, and radius requirements.
3. Use the stated material designation when identifying or ordering the seal.
