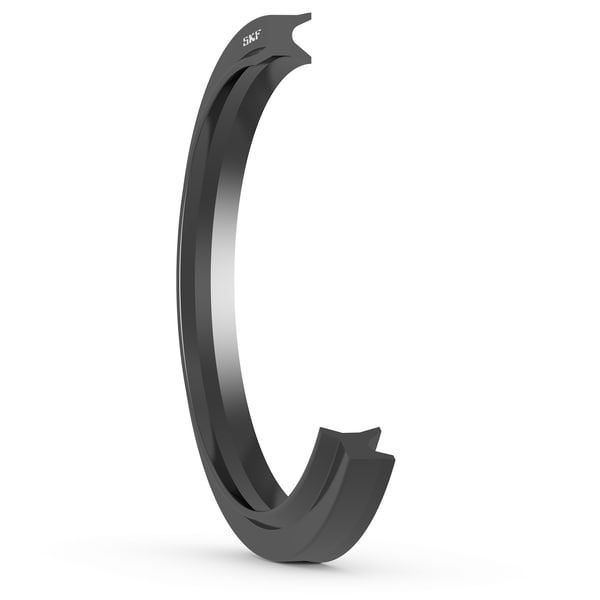

SKF HW-3500-J2G
Polyurethane snap-in wiper seal with double lips
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
88.9 mm
Rod diameter
D
101.47 mm
Housing groove diameter
D2
92.33 mm
Housing shoulder diameter
L
7.14 mm
Housing groove width
S
6.29 mm
Radial depth
C
6.35 mm
Lead-in chamfer length on rod
R
0.64 mm
Groove radius
mass
0.0131 kg
Product net weight
