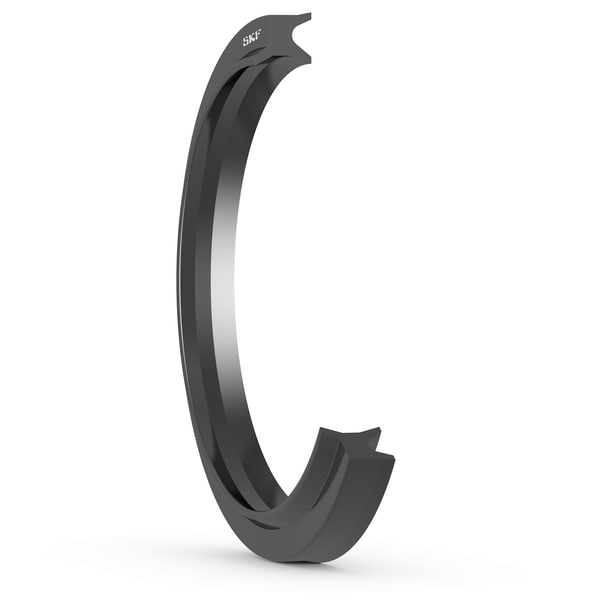

SKF HW-500-J2G
Polyurethane snap-in wiper seal with double lips
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
12.7 mm
Rod diameter
D
20.37 mm
Housing groove diameter
D2
15.75 mm
Housing shoulder diameter
L
5.16 mm
Housing groove width
S
3.84 mm
Radial depth
C
4.75 mm
Lead-in chamfer length on rod
R
0.64 mm
Groove radius
mass
0.001 kg
Product net weight
