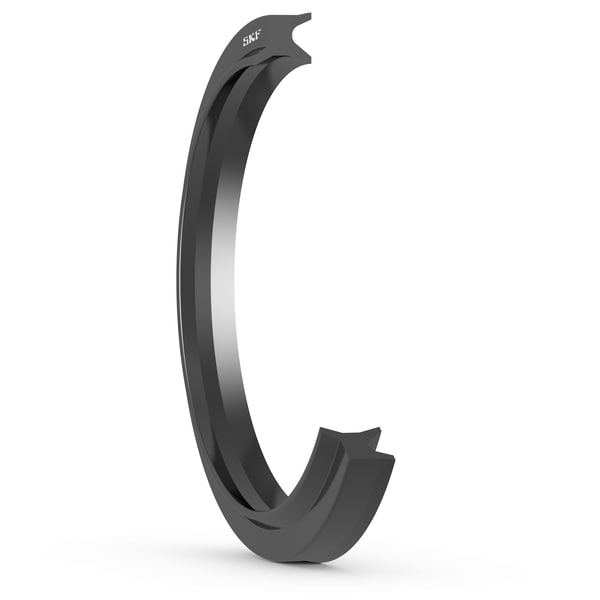

SKF HW-70X80X7-J2G
Polyurethane snap-in wiper seal with double lips
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
70.0 mm
Rod diameter
D
80.0 mm
Housing groove diameter
D2
75.0 mm
Housing shoulder diameter
L
7.0 mm
Housing groove width
S
5.0 mm
Radial depth
C
3.5 mm
Lead-in chamfer length on rod
R
0.3 mm
Groove radius
mass
0.0078 kg
Product net weight
