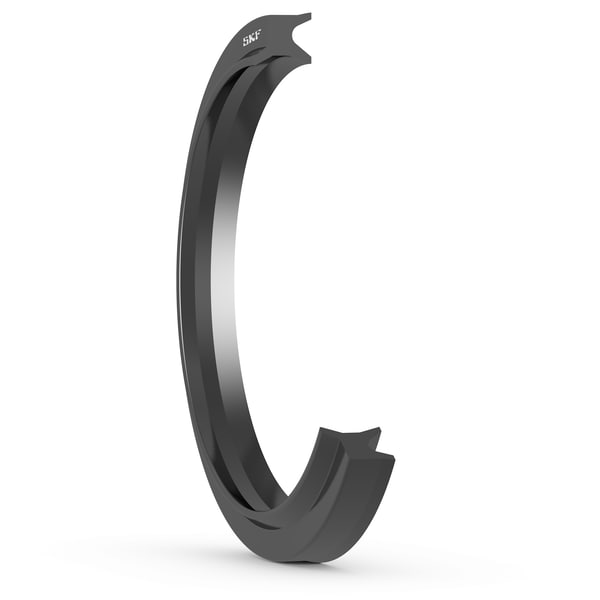

SKF HW-98X108X7-J2G
Polyurethane snap-in wiper seal with double lips
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
98.0 mm
Rod diameter
D
108.0 mm
Housing groove diameter
D2
103.0 mm
Housing shoulder diameter
L
7.0 mm
Housing groove width
S
5.0 mm
Radial depth
R
0.3 mm
Groove radius
C
3.5 mm
Lead-in chamfer length on rod
mass
0.0108 kg
Product net weight
