SKF LM 603049/012

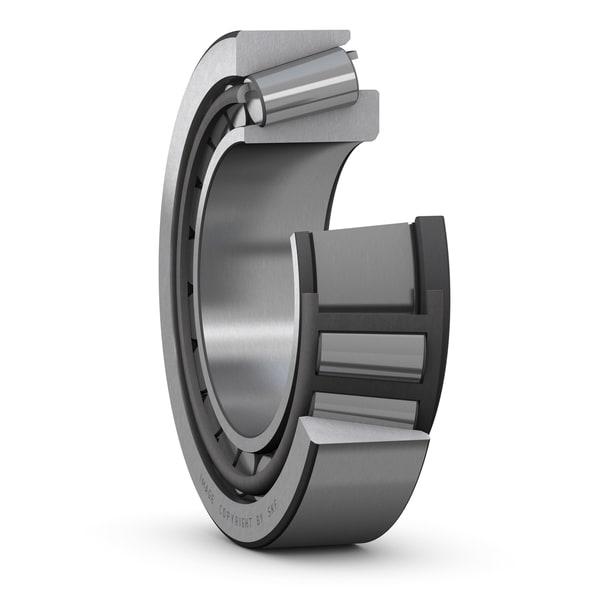

Single row tapered roller bearing
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
45.242 mm
Bore diameter
D
77.788 mm
Outside diameter
T
21.43 mm
Total width
d1
62.0 mm
Shoulder diameter of inner ring
B
19.842 mm
Width of inner ring
C
16.667 mm
Width of outer ring
r1,2
3.5 mm
Chamfer dimension of inner ring
r3,4
0.8 mm
Chamfer dimension of outer ring
a
18.656 mm
Distance side face to pressure point
mass
0.369 kg
Product net weight
