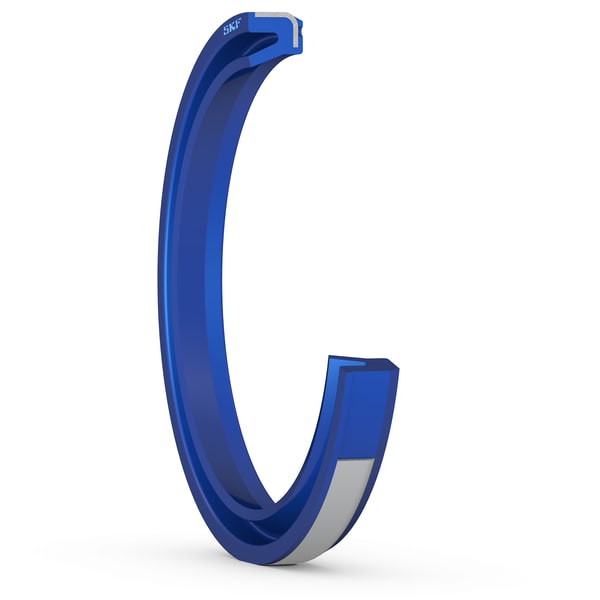

SKF MCW-32X42X7-E6Q
Polyurethane press-in wiper seal with a single lip and a steel retaining ring
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
32.0 mm
Rod diameter
D
42.0 mm
Housing groove diameter
L
7.5 mm
Housing groove width
S
5.0 mm
Radial depth
R
0.8 mm
Groove radius
C
6.0 mm
Lead-in chamfer length on rod
C1
0.7 mm
Lead-in chamfer length in housing
C1
1.0 mm
Lead-in chamfer length in housing
mass
0.008 kg
Product net weight
