SKF MCW345-2500-375-H9B

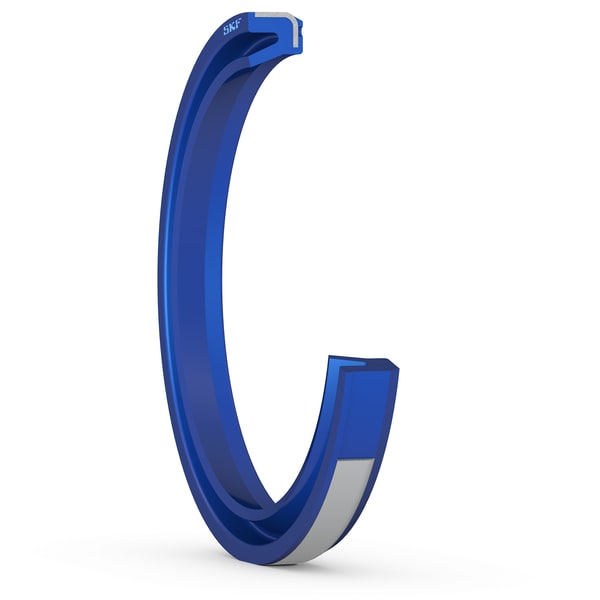

Polyurethane press-in wiper seal with a single lip and a steel retaining ring
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
63.5 mm
Rod diameter
D
81.03 mm
Housing groove diameter
L
10.48 mm
Housing groove width
S
8.76 mm
Radial depth
R
0.64 mm
Groove radius
C
6.35 mm
Lead-in chamfer length on rod
C1
0.71 mm
Lead-in chamfer length in housing
C1
1.02 mm
Lead-in chamfer length in housing
mass
0.034 kg
Product net weight
