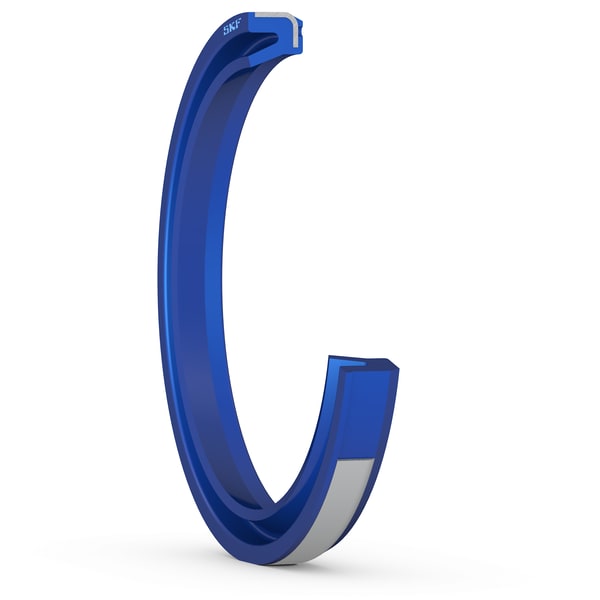

SKF MCW375-8000-375-H9B
Polyurethane press-in wiper seal with a single lip and a steel retaining ring
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
203.2 mm
Rod diameter
D
222.25 mm
Housing groove diameter
L
10.48 mm
Housing groove width
S
9.53 mm
Radial depth
R
0.64 mm
Groove radius
C
6.35 mm
Lead-in chamfer length on rod
C1
0.71 mm
Lead-in chamfer length in housing
C1
1.02 mm
Lead-in chamfer length in housing
mass
0.132 kg
Product net weight
