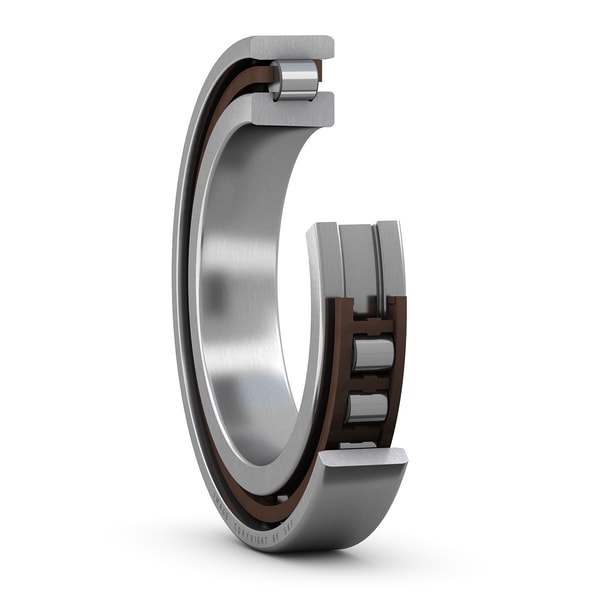

SKF N 1009 KTNHA/SP
Super-precision, high-speed design, single row cylindrical roller bearing
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
45.0 mm
Bore diameter
D
75.0 mm
Outside diameter
B
16.0 mm
Width
d1
56.3 mm
Shoulder diameter inner ring
E
67.5 mm
Raceway diameter outer ring
r1,2
1.0 mm
Chamfer dimension
r3,4
0.6 mm
Chamfer dimension
s
2.0 mm
Permissible axial displacement from the normal position of one bearing ring relative to the other (all)
s1
1.5 mm
Permissible axial displacement from the normal position of one bearing ring relative to the other (variants with TNHA cage)
mass
0.24 kg
Product net weight
Abutment dimensions
da
50.0 mm
Abutment diameter shaft
Da
69.0 mm
Abutment diameter housing
Da
70.0 mm
Abutment diameter housing
ra
1.0 mm
Radius of fillet
