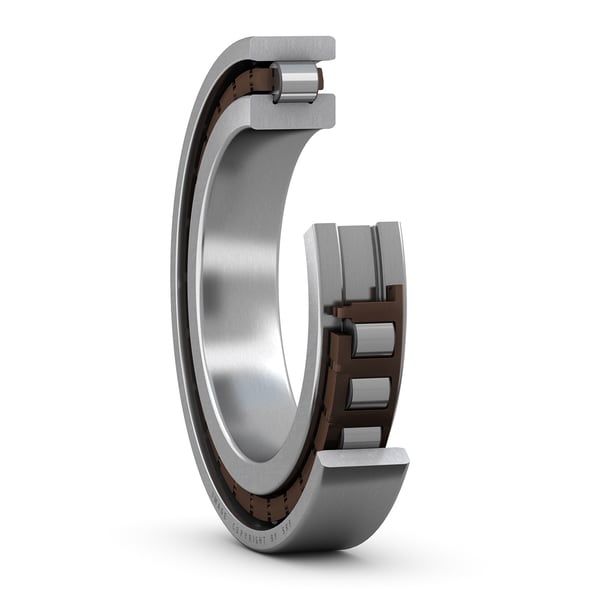

SKF N 1009 TN/SP
Super-precision single row cylindrical roller bearing
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
45.0 mm
Bore diameter
D
75.0 mm
Outside diameter
B
16.0 mm
Width
d1
56.3 mm
Shoulder diameter inner ring
E
67.5 mm
Raceway diameter outer ring
r1,2
1.0 mm
Chamfer dimension
s
2.0 mm
Permissible axial displacement from the normal position of one bearing ring relative to the other (all)
mass
0.246 kg
Product net weight
Abutment dimensions
da
50.0 mm
Abutment diameter shaft
Da
69.0 mm
Abutment diameter housing
Da
70.0 mm
Abutment diameter housing
ra
1.0 mm
Radius of fillet
dn
66.2 mm
Oil nozzle position (not for variants with TNHA cage)
