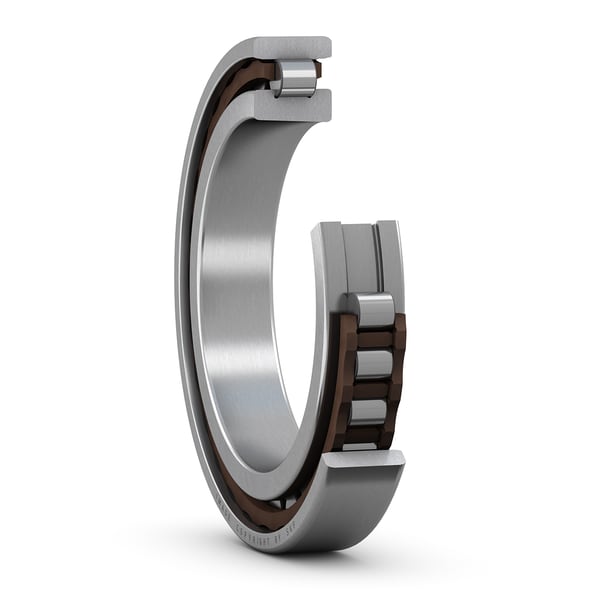

SKF N 1011 KPHA/SP
Super-precision single row cylindrical roller bearing
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
55.0 mm
Bore diameter
D
90.0 mm
Outside diameter
B
18.0 mm
Width
d1
68.2 mm
Shoulder diameter inner ring
E
81.0 mm
Raceway diameter outer ring
r1,2
1.1 mm
Chamfer dimension
r3,4
0.6 mm
Chamfer dimension
s
2.5 mm
Permissible axial displacement from the normal position of one bearing ring relative to the other (all)
mass
0.386 kg
Product net weight
Abutment dimensions
da
61.5 mm
Abutment diameter shaft
Da
82.0 mm
Abutment diameter housing
Da
83.5 mm
Abutment diameter housing
ra
1.0 mm
Radius of fillet
dn
70.1 mm
Oil nozzle position (not for variants with TNHA cage)
