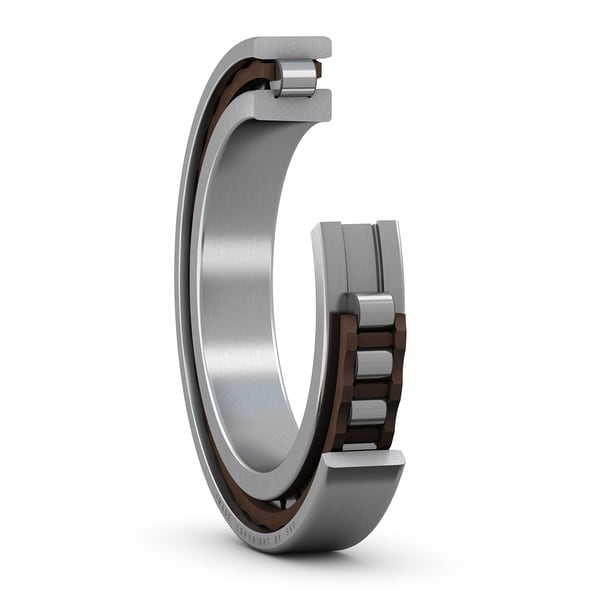

SKF N 1012 KPHA/SPVR522
Super-precision single row cylindrical roller bearing
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
60.0 mm
Bore diameter
D
95.0 mm
Outside diameter
B
18.0 mm
Width
d1
73.3 mm
Shoulder diameter inner ring
E
86.1 mm
Raceway diameter outer ring
r1,2
1.1 mm
Chamfer dimension
r3,4
0.6 mm
Chamfer dimension
s
2.5 mm
Permissible axial displacement from the normal position of one bearing ring relative to the other (all)
mass
0.414 kg
Product net weight
Abutment dimensions
da
66.5 mm
Abutment diameter shaft
Da
87.0 mm
Abutment diameter housing
Da
88.5 mm
Abutment diameter housing
ra
1.0 mm
Radius of fillet
dn
75.2 mm
Oil nozzle position (not for variants with TNHA cage)
