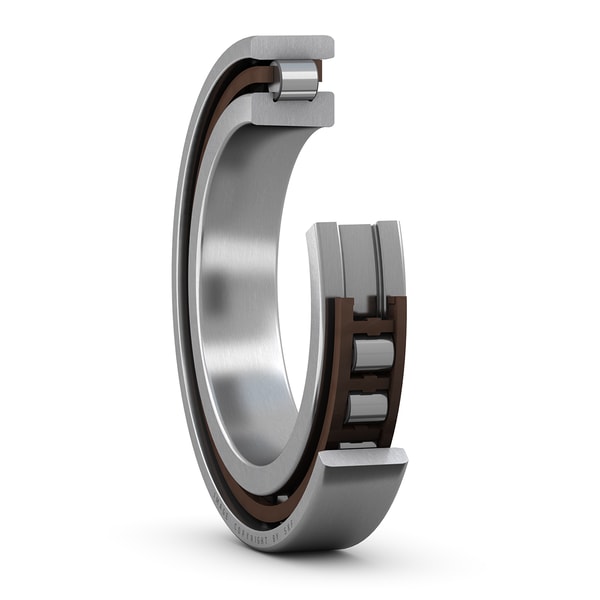

SKF N 1014 KTNHA/SP
Super-precision, high-speed design, single row cylindrical roller bearing
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
70.0 mm
Bore diameter
D
110.0 mm
Outside diameter
B
20.0 mm
Width
d1
85.6 mm
Shoulder diameter inner ring
E
100.0 mm
Raceway diameter outer ring
r1,2
1.1 mm
Chamfer dimension
r3,4
0.6 mm
Chamfer dimension
s
3.0 mm
Permissible axial displacement from the normal position of one bearing ring relative to the other (all)
s1
1.5 mm
Permissible axial displacement from the normal position of one bearing ring relative to the other (variants with TNHA cage)
mass
0.614 kg
Product net weight
Abutment dimensions
da
76.5 mm
Abutment diameter shaft
Da
101.0 mm
Abutment diameter housing
Da
103.5 mm
Abutment diameter housing
ra
1.0 mm
Radius of fillet
