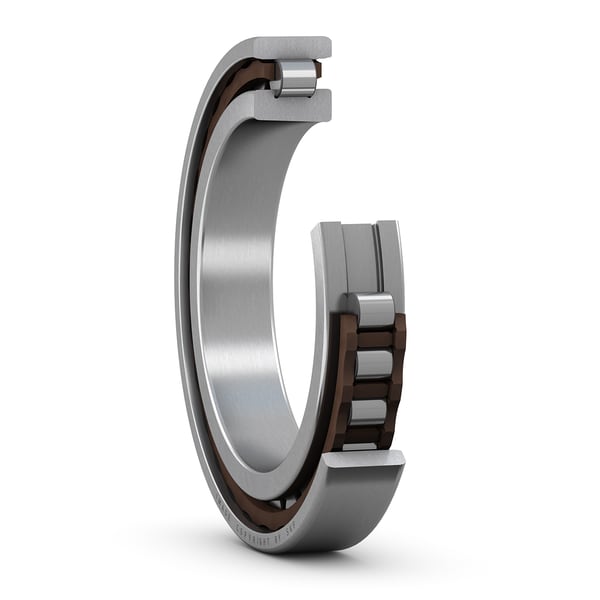

SKF N 1018 KPHA/SPVS019
Super-precision single row cylindrical roller bearing
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
90.0 mm
Bore diameter
D
140.0 mm
Outside diameter
B
24.0 mm
Width
d1
109.4 mm
Shoulder diameter inner ring
E
127.0 mm
Raceway diameter outer ring
r1,2
1.5 mm
Chamfer dimension
r3,4
1.0 mm
Chamfer dimension
s
4.0 mm
Permissible axial displacement from the normal position of one bearing ring relative to the other (all)
mass
1.2 kg
Product net weight
Abutment dimensions
da
98.0 mm
Abutment diameter shaft
Da
129.0 mm
Abutment diameter housing
Da
137.6 mm
Abutment diameter housing
ra
1.5 mm
Radius of fillet
dn
111.95 mm
Oil nozzle position (not for variants with TNHA cage)
