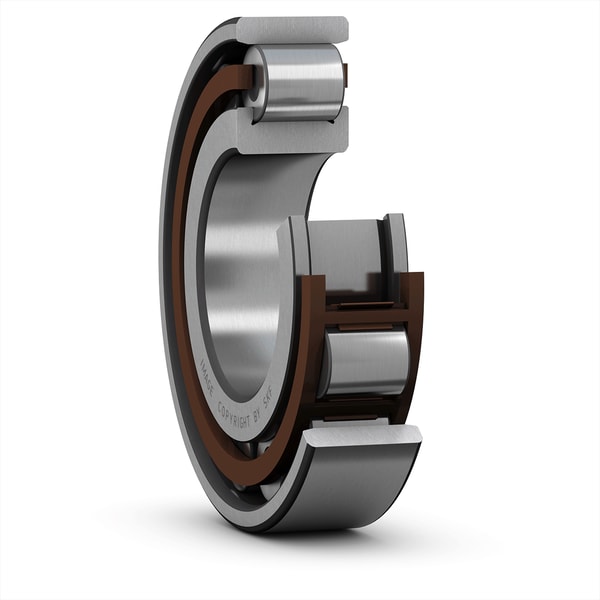

SKF N 203 ECP
Single row cylindrical roller bearing, N design
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
17.0 mm
Bore diameter
D
40.0 mm
Outside diameter
B
12.0 mm
Width
d1
25.0 mm
Shoulder diameter of inner ring
E
35.1 mm
Raceway diameter of outer ring
r1,2
0.6 mm
Chamfer dimension
r3,4
0.3 mm
Chamfer dimension
s
1.0 mm
Permissible axial displacement
mass
0.066 kg
Product net weight
