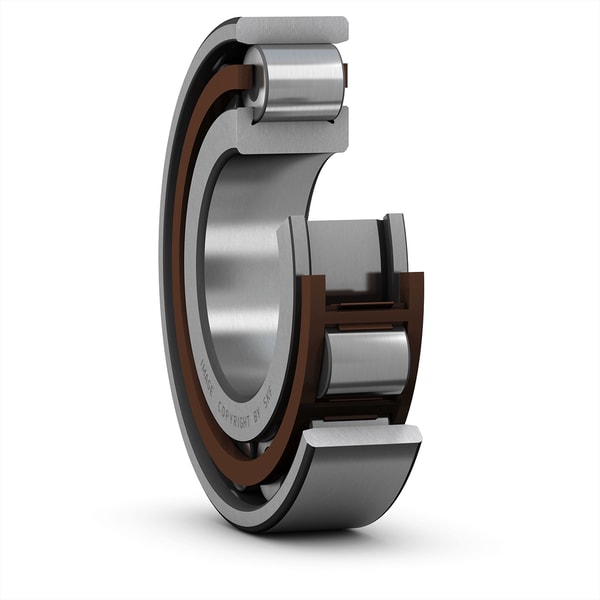

SKF N 206 ECP
Single row cylindrical roller bearing, N design
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
30.0 mm
Bore diameter
D
62.0 mm
Outside diameter
B
16.0 mm
Width
d1
41.2 mm
Shoulder diameter of inner ring
E
55.5 mm
Raceway diameter of outer ring
r1,2
1.0 mm
Chamfer dimension
r3,4
0.6 mm
Chamfer dimension
s
1.3 mm
Permissible axial displacement
mass
0.198 kg
Product net weight
