SKF N 218 ECP

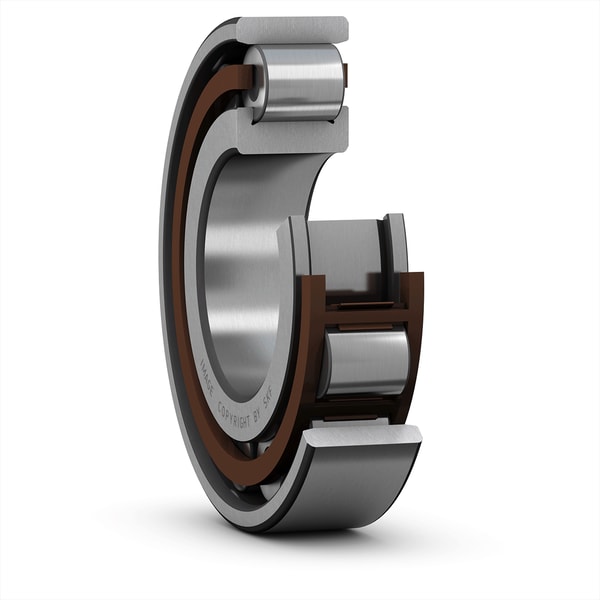

Single row cylindrical roller bearing, N design
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
90.0 mm
Bore diameter
D
160.0 mm
Outside diameter
B
30.0 mm
Width
d1
114.0 mm
Shoulder diameter of inner ring
E
145.0 mm
Raceway diameter of outer ring
r1,2
2.0 mm
Chamfer dimension
r3,4
2.0 mm
Chamfer dimension
s
1.8 mm
Permissible axial displacement
mass
2.32 kg
Product net weight
