SKF N 224 ECP

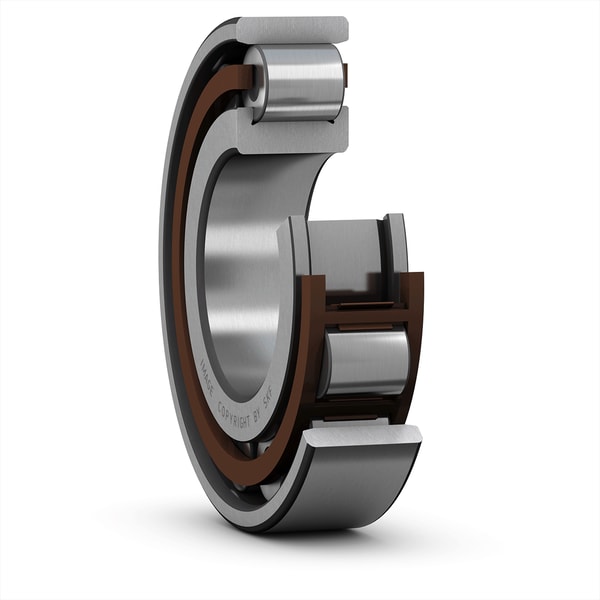

Single row cylindrical roller bearing, N design
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
120.0 mm
Bore diameter
D
215.0 mm
Outside diameter
B
40.0 mm
Width
d1
153.0 mm
Shoulder diameter of inner ring
E
195.5 mm
Raceway diameter of outer ring
r1,2
2.1 mm
Chamfer dimension
r3,4
2.1 mm
Chamfer dimension
s
1.9 mm
Permissible axial displacement
mass
5.73 kg
Product net weight
