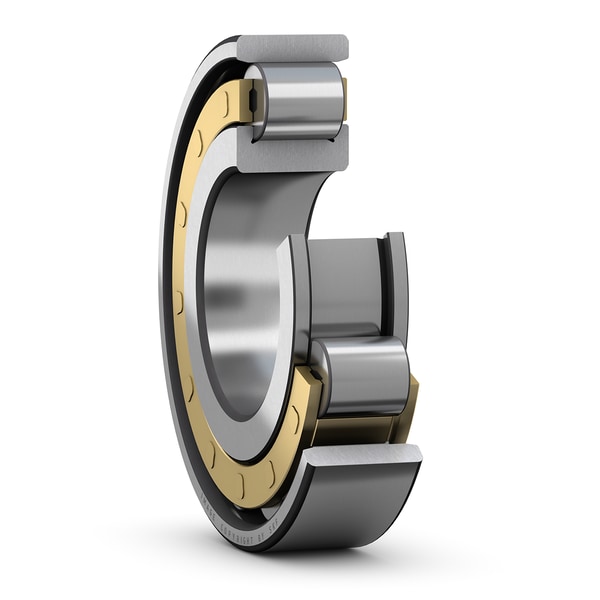

SKF N 28/630 ECMB/HB1
Single row cylindrical roller bearing, N design
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
630.0 mm
Bore diameter
D
780.0 mm
Outside diameter
B
88.0 mm
Width
d1
687.0 mm
Shoulder diameter of inner ring
E
739.0 mm
Raceway diameter of outer ring
r1,2
4.0 mm
Chamfer dimension
s
7.0 mm
Permissible axial displacement
mass
100.0 kg
Product net weight
