SKF N 304 ECP

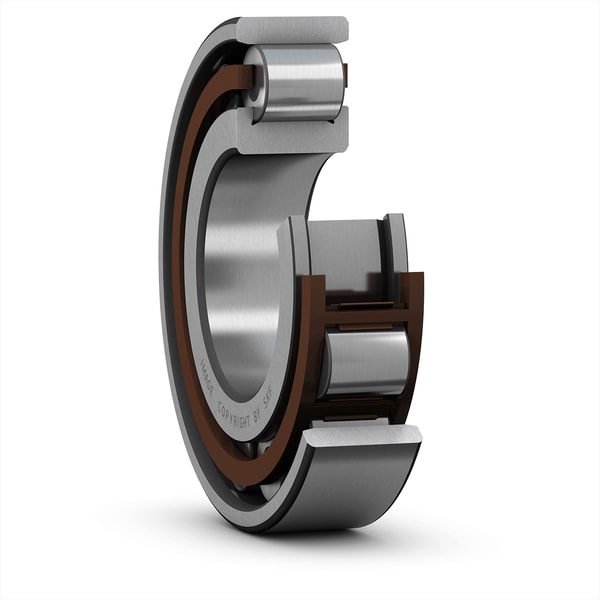

Single row cylindrical roller bearing, N design
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
20.0 mm
Bore diameter
D
52.0 mm
Outside diameter
B
15.0 mm
Width
d1
31.2 mm
Shoulder diameter of inner ring
E
45.5 mm
Raceway diameter of outer ring
r1,2
1.1 mm
Chamfer dimension
r3,4
0.6 mm
Chamfer dimension
s
0.9 mm
Permissible axial displacement
mass
0.149 kg
Product net weight
