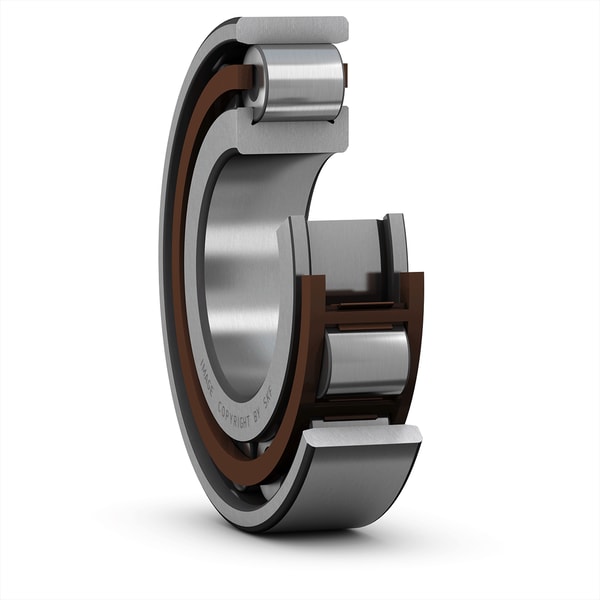

SKF N 306 ECP
Single row cylindrical roller bearing, N design
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
30.0 mm
Bore diameter
D
72.0 mm
Outside diameter
B
19.0 mm
Width
d1
45.0 mm
Shoulder diameter of inner ring
E
62.5 mm
Raceway diameter of outer ring
r1,2
1.1 mm
Chamfer dimension
r3,4
1.1 mm
Chamfer dimension
s
1.4 mm
Permissible axial displacement
mass
0.358 kg
Product net weight
