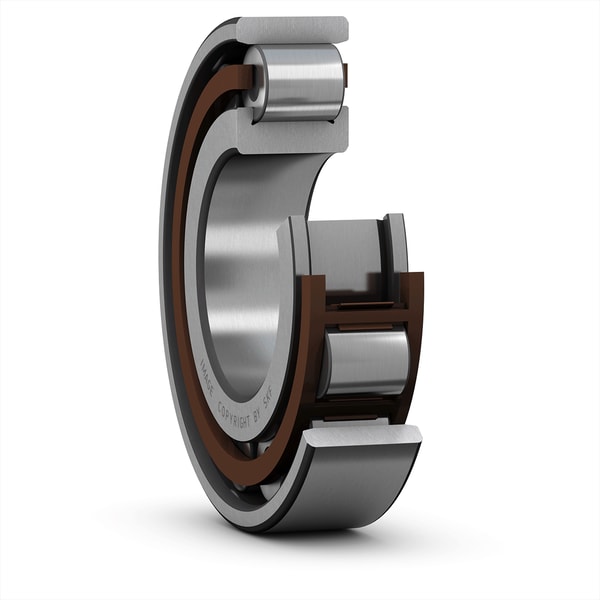

SKF N 310 ECP
Single row cylindrical roller bearing, N design
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
50.0 mm
Bore diameter
D
110.0 mm
Outside diameter
B
27.0 mm
Width
d1
71.2 mm
Shoulder diameter of inner ring
E
97.0 mm
Raceway diameter of outer ring
r1,2
2.0 mm
Chamfer dimension
r3,4
2.0 mm
Chamfer dimension
s
1.9 mm
Permissible axial displacement
mass
1.1 kg
Product net weight
