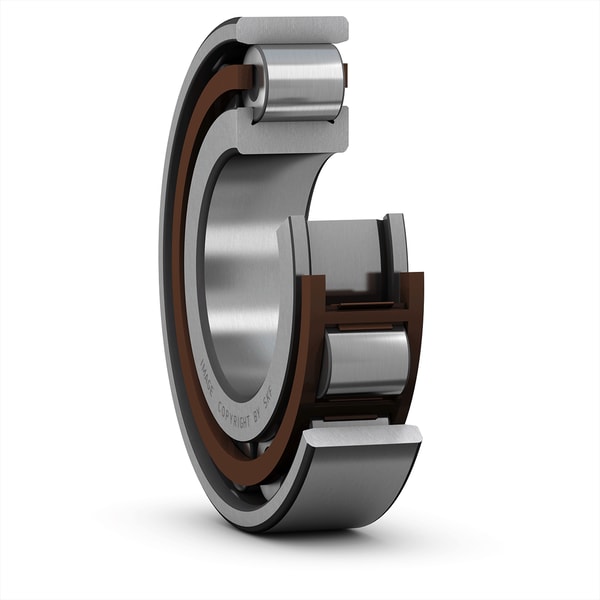

SKF N 315 ECP
Single row cylindrical roller bearing, N design
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
75.0 mm
Bore diameter
D
160.0 mm
Outside diameter
B
37.0 mm
Width
d1
104.0 mm
Shoulder diameter of inner ring
E
143.0 mm
Raceway diameter of outer ring
r1,2
2.1 mm
Chamfer dimension
r3,4
2.1 mm
Chamfer dimension
s
1.8 mm
Permissible axial displacement
mass
3.22 kg
Product net weight
