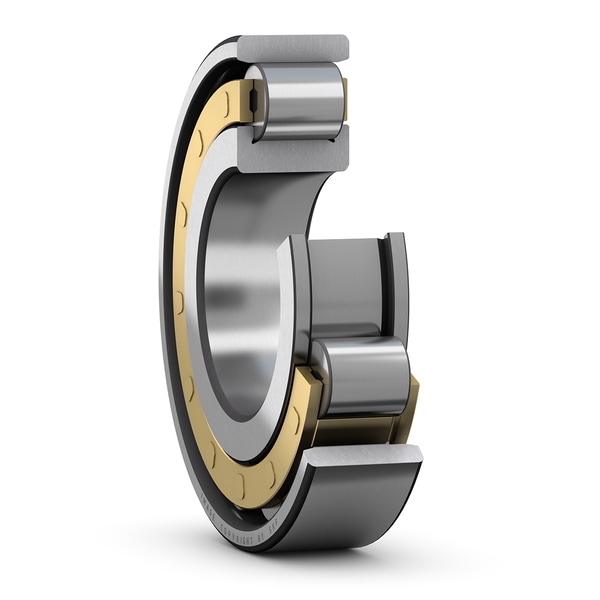

SKF N 316 ECM
Single row cylindrical roller bearing, N design
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
80.0 mm
Bore diameter
D
170.0 mm
Outside diameter
B
39.0 mm
Width
d1
110.0 mm
Shoulder diameter of inner ring
E
151.0 mm
Raceway diameter of outer ring
r1,2
2.1 mm
Chamfer dimension
r3,4
2.1 mm
Chamfer dimension
s
2.1 mm
Permissible axial displacement
mass
4.39 kg
Product net weight
