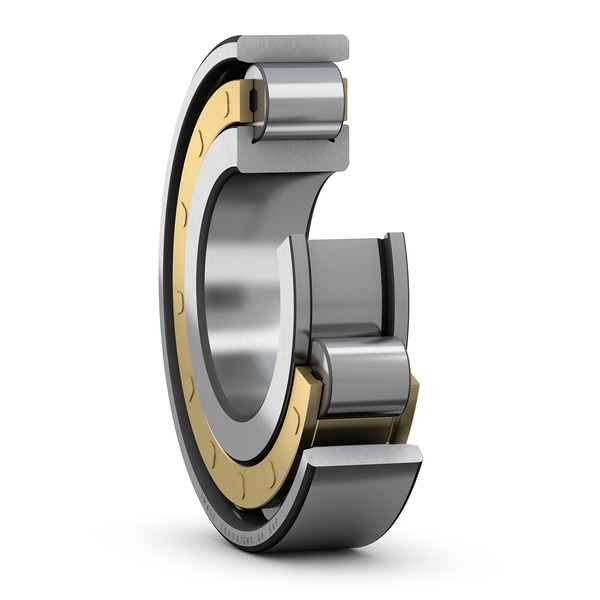

SKF N 317 ECM
Single row cylindrical roller bearing, N design
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
85.0 mm
Bore diameter
D
180.0 mm
Outside diameter
B
41.0 mm
Width
d1
117.0 mm
Shoulder diameter of inner ring
E
160.0 mm
Raceway diameter of outer ring
r1,2
3.0 mm
Chamfer dimension
r3,4
3.0 mm
Chamfer dimension
s
2.3 mm
Permissible axial displacement
mass
5.25 kg
Product net weight
