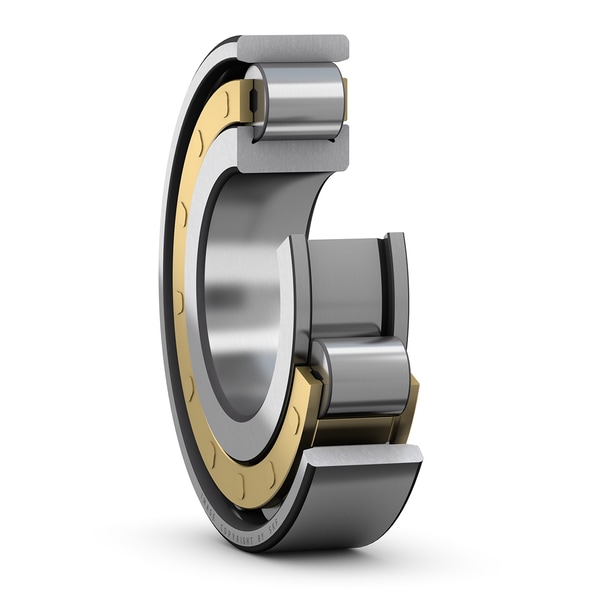

SKF N 322 ECM
Single row cylindrical roller bearing, N design
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
110.0 mm
Bore diameter
D
240.0 mm
Outside diameter
B
50.0 mm
Width
d1
155.0 mm
Shoulder diameter of inner ring
E
211.0 mm
Raceway diameter of outer ring
r1,2
3.0 mm
Chamfer dimension
r3,4
3.0 mm
Chamfer dimension
s
3.0 mm
Permissible axial displacement
mass
11.4 kg
Product net weight
