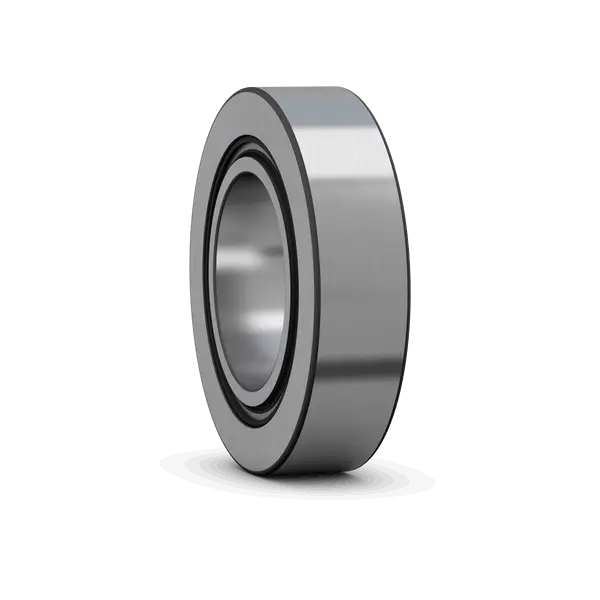

SKF NA 2205.2RSX
Support roller (yoke-type track roller), without flange rings, with integral sealing
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
D
52.0 mm
Outside diameter
d
25.0 mm
Bore diameter
C
17.8 mm
Width outer ring
B
18.0 mm
Width inner ring
D1
38.0 mm
Recess diameter outer ring shoulder
F
30.0 mm
Raceway diameter inner ring
r1,2
1.0 mm
Chamfer dimension outer ring
r3,4
0.3 mm
Chamfer dimension inner ring
mass
0.209 kg
Product net weight
