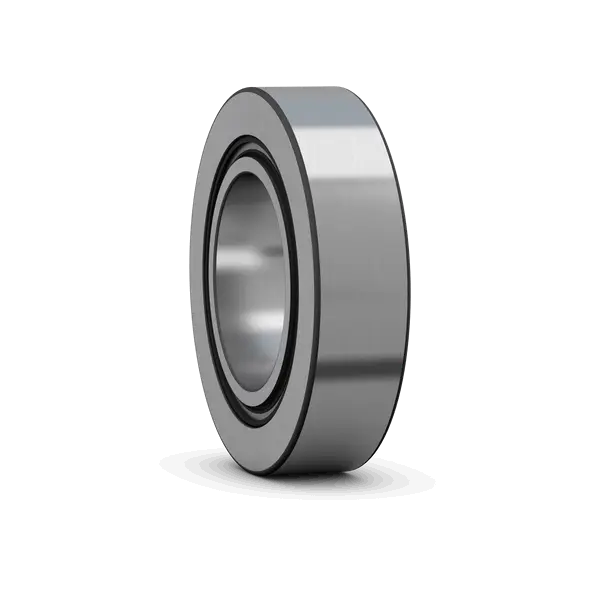

SKF STO 12
Support roller (yoke-type track roller), without flange rings
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
D
32.0 mm
Outside diameter
d
12.0 mm
Bore diameter
C
11.8 mm
Width outer ring
B
12.0 mm
Width inner ring
E
22.0 mm
Raceway diameter outer ring
F
16.0 mm
Raceway diameter inner ring
r1,2
0.3 mm
Chamfer dimension outer ring
r3,4
0.3 mm
Chamfer dimension inner ring
mass
0.057 kg
Product net weight
