SKF NCF 18/630 V

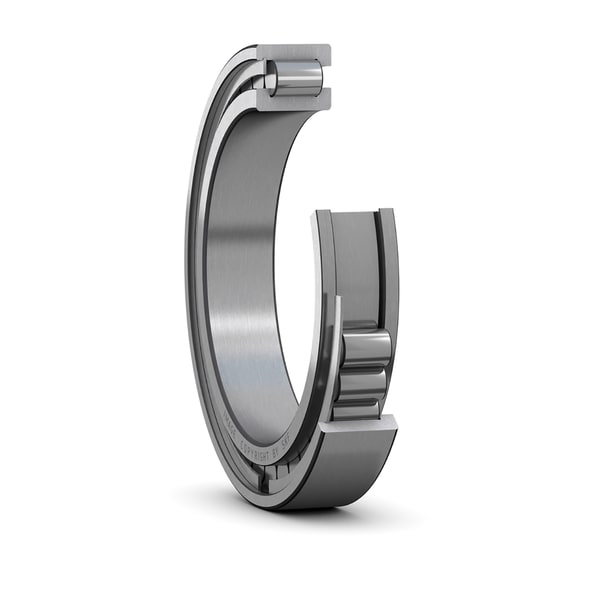

Single row full complement cylindrical roller bearing, NCF design
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
630.0 mm
Bore diameter
D
780.0 mm
Outside diameter
B
69.0 mm
Width
d1
681.0 mm
Shoulder diameter inner ring
D1
725.0 mm
Shoulder diameter outer ring
E
739.0 mm
Raceway diameter outer ring
s
8.0 mm
Permissible axial displacement from the normal position of one bearing ring relative to the other
r1,2
4.0 mm
Chamfer dimension
mass
69.9 kg
Product net weight
