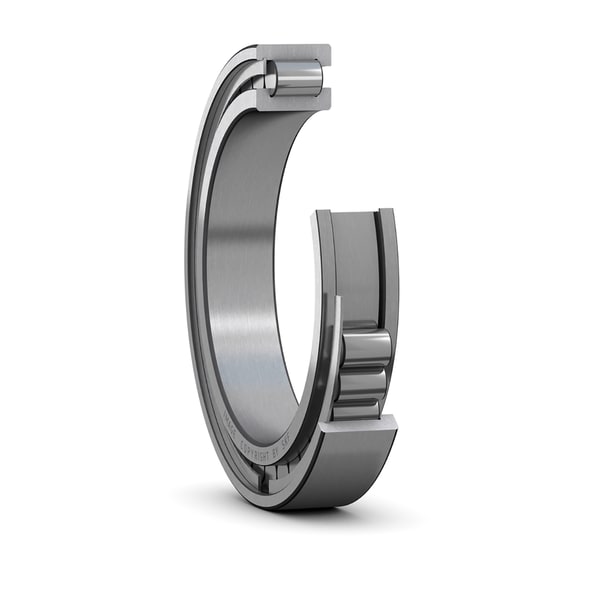

SKF NCF 18/710 V
Single row full complement cylindrical roller bearing, NCF design
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
710.0 mm
Bore diameter
D
870.0 mm
Outside diameter
B
74.0 mm
Width
d1
767.0 mm
Shoulder diameter inner ring
D1
815.0 mm
Shoulder diameter outer ring
E
831.0 mm
Raceway diameter outer ring
s
8.0 mm
Permissible axial displacement from the normal position of one bearing ring relative to the other
r1,2
4.0 mm
Chamfer dimension
mass
89.1 kg
Product net weight
