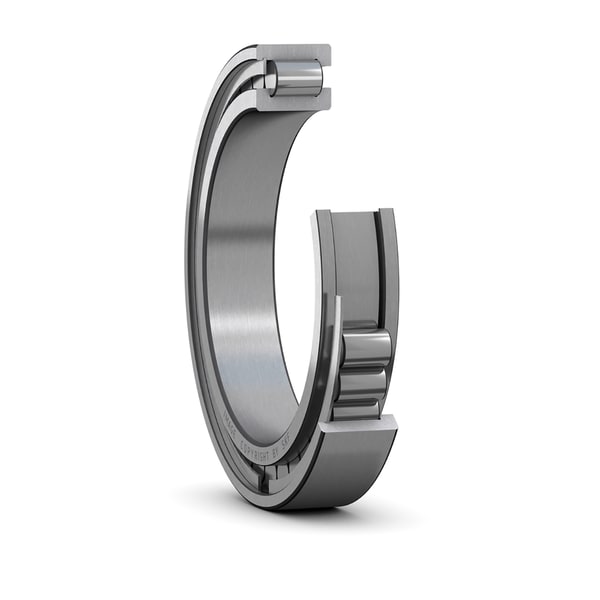

SKF NCF 1876 V
Single row full complement cylindrical roller bearing, NCF design
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
380.0 mm
Bore diameter
D
480.0 mm
Outside diameter
B
46.0 mm
Width
d1
416.0 mm
Shoulder diameter inner ring
D1
448.0 mm
Shoulder diameter outer ring
E
458.0 mm
Raceway diameter outer ring
s
3.5 mm
Permissible axial displacement from the normal position of one bearing ring relative to the other
r1,2
2.1 mm
Chamfer dimension
mass
18.9 kg
Product net weight
